Linear Regulated Power Supply
About Linear Power Supply:

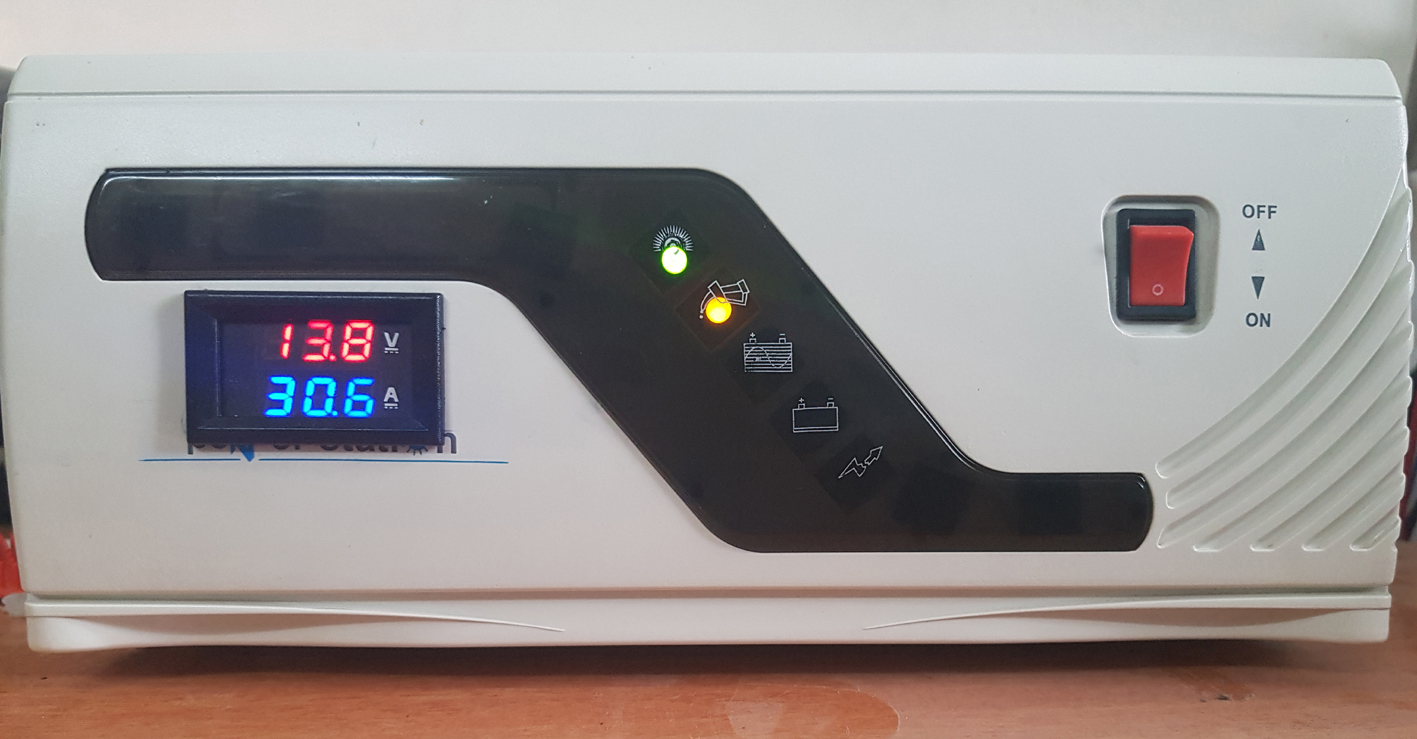

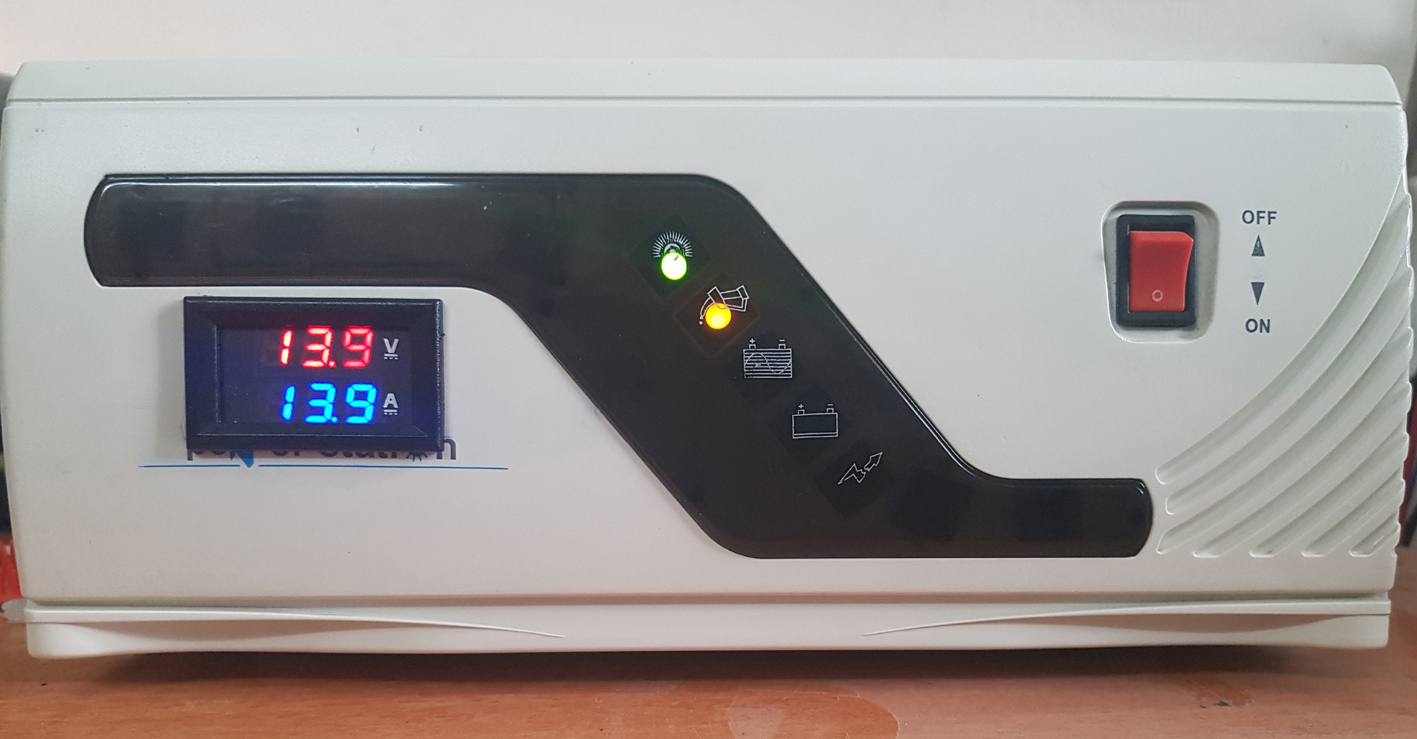

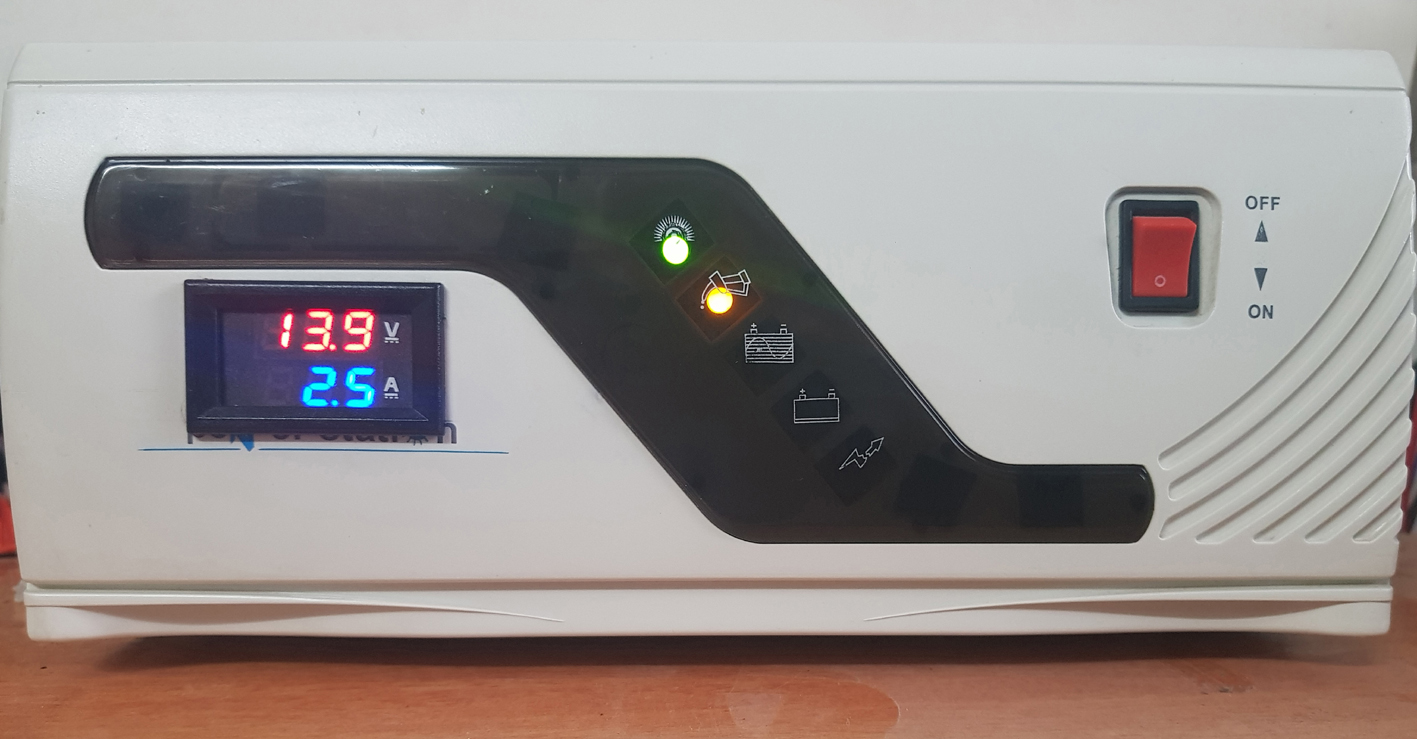

This is a Home Brewed Linear Regulated Power Supply that can deliver 13.8V / 50A. The circuit was designed and assembled by me using LM723 and 4 * IRFP150N as the final drive in the year 2010 and given a face lift with new cabinet and Digital Volt and Current Meter in the year 2018. The cabinet was selected from the Inverter cabinets which suited for the transformer and other circuits. Refer the photos for the load regulation of this Regulated Power Supply Unit.
